If you’ve ever stared at a jumble of solar panel cables wondering whether you’re about to fry your inverter—or worse, start a fire—you’re not alone. I once mixed up positive and negative leads on a backyard DIY install. Sparks flew, the charge controller blinked out, and my weekend project turned into a $200 lesson in humility. That’s why understanding a basic solar panel wiring diagram isn’t just helpful—it’s essential for safety, efficiency, and avoiding expensive blunders.
This guide cuts through the confusion with clear, actionable steps grounded in real-world experience. We’ll cover series vs. parallel configurations, cable sizing, component compatibility, and common pitfalls—even the “terrible tips” floating online. By the end, you’ll wire your system with confidence, not guesswork.
Table of Contents
- Why Basic Solar Panel Wiring Matters in Home Improvement
- Step-by-Step Guide to Wiring Your Solar Panels
- Top Best Practices for Safe & Efficient Solar Wiring
- Real-World Examples: What Works (and What Doesn’t)
- Frequently Asked Questions
Key Takeaways
- Miswiring can cause equipment damage, fire hazards, or voided warranties—always follow a verified basic solar panel wiring diagram.
- Series wiring increases voltage; parallel wiring increases amperage—choose based on your inverter’s specs.
- Use appropriately sized cables (typically 10–12 AWG for residential systems) to minimize voltage drop.
- Always include fuses, disconnects, and grounding for code compliance and safety.
- When in doubt, consult a licensed electrician—especially if connecting to the grid.
Why Basic Solar Panel Wiring Matters in Home Improvement
In home improvement, solar energy promises lower bills and energy independence—but only if installed correctly. Faulty wiring undermines both. According to the U.S. Department of Energy, improper electrical connections are a leading cause of residential solar system failures and safety incidents. A solid basic solar panel wiring diagram acts as your blueprint, ensuring every component—from panels to batteries to inverters—communicates safely and efficiently.
Step-by-Step Guide to Wiring Your Solar Panels
1. Determine Your System Voltage
Most off-grid systems run on 12V, 24V, or 48V. Check your inverter and battery bank specs first. This dictates whether you wire panels in series (to boost voltage) or parallel (to maintain voltage but increase current).
2. Choose Series vs. Parallel Configuration
For a 24V system using 12V panels? Wire two panels in series. Need more amperage without exceeding your charge controller’s voltage limit? Go parallel. Always match your configuration to your charge controller’s maximum input ratings.
3. Select Proper Cables and Connectors

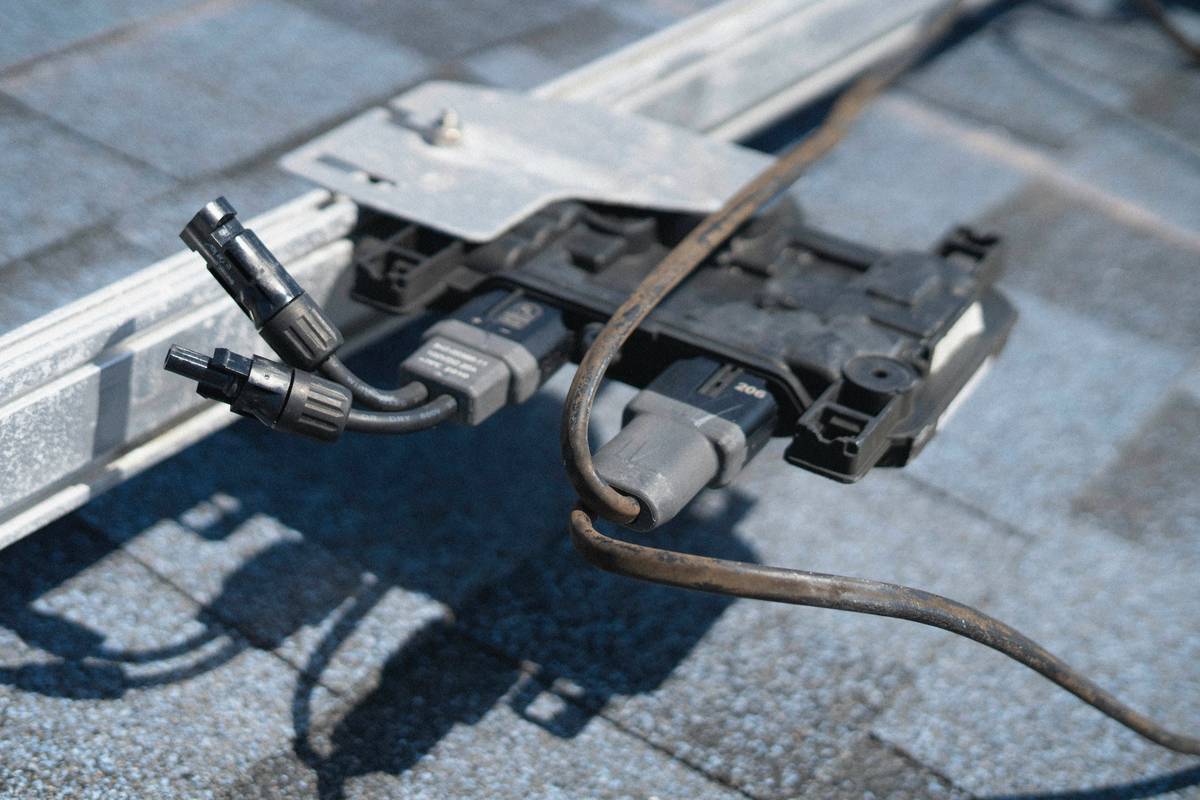

Use PV-certified cables (like USE-2 or PV wire) rated for outdoor, UV-resistant use. MC4 connectors are standard—they lock securely and prevent accidental disconnection. Never substitute household wiring; it degrades under sun exposure and lacks proper insulation.
4. Install Safety Components
Add fuses between batteries and the charge controller (and between panels in parallel setups). Include DC disconnects for emergency shutdowns. Ground all metal parts per National Electrical Code (NEC) Article 690—this protects against lightning strikes and short circuits.
5. Test Before Final Connection
Use a multimeter to verify open-circuit voltage and short-circuit current before connecting to your charge controller. If readings don’t match your basic solar panel wiring diagram, stop and troubleshoot.
Top Best Practices for Safe & Efficient Solar Wiring
- Calculate voltage drop: Keep it under 3% by using adequately sized cables. For a 20-foot run at 12V/10A, 10 AWG is safer than 14 AWG.
- Label everything: Use waterproof tags on all wires—future you (or a technician) will thank you.
- Avoid daisy-chaining: Never connect more than three panels in parallel without individual fusing—a single fault can cascade.
- Secure cables neatly: Use UV-rated zip ties or conduit to prevent chafing and rodent damage.
- Terrific tip to ignore: “Just twist wires together and wrap with electrical tape.” Absolutely not. This invites corrosion, arcing, and failure. Always use crimped lugs or proper terminals.
Real-World Examples: What Works (and What Doesn’t)
Last year, a Nova Scotia homeowner wired four 100W panels in parallel for his cabin using undersized 16 AWG extension cords (yes, really). Voltage drop hit 12%, causing his fridge to cycle erratically and his battery to never fully charge. After rewiring with 10 AWG PV wire and adding a fused combiner box, his system output jumped by 18%—verified by his monitoring app.
By contrast, a properly executed 48V system in Vermont used a clear basic solar panel wiring diagram to connect eight panels in two series strings, then paralleled those strings. With correct fusing and grounding per NEC standards, the system has operated flawlessly for 2+ years, powering lights, well pumps, and a small workshop. Data from the National Renewable Energy Laboratory (NREL) confirms that adherence to standardized wiring practices reduces long-term maintenance costs by up to 30% (NREL, 2022).
Frequently Asked Questions
Can I wire solar panels in series and parallel together?
Yes—this is called a series-parallel configuration and is common in larger systems. It balances voltage and current to match inverter requirements. Always reference a reliable basic solar panel wiring diagram to avoid mismatched strings.
What size fuse do I need between panels and the charge controller?
Fuse size depends on panel specs and wiring. As a rule, use a fuse rated at 1.56 times the panel’s short-circuit current (Isc). For example, if Isc is 8A, use a 12.5A (or next standard size: 15A) fuse.
Do I need an electrician to wire solar panels?
For off-grid sheds or RVs, many DIYers succeed with research and caution. But for grid-tied or whole-home systems, most jurisdictions require a licensed electrician for inspection and compliance. Check local codes via energy.gov.
Where can I find a free, accurate solar panel wiring diagram?
Reputable manufacturers like Renogy and Victron Energy provide downloadable diagrams. We also recommend starting with our detailed guides—learn more about our team’s background on our About Us page.
How do I know if my wiring is safe?
Signs of trouble: melted insulation, hot connectors, flickering loads, or frequent breaker trips. When installing, always follow NEC Article 690 and consider third-party inspection. If you share personal project details with us, rest assured we respect your privacy—see our Privacy Policy.
